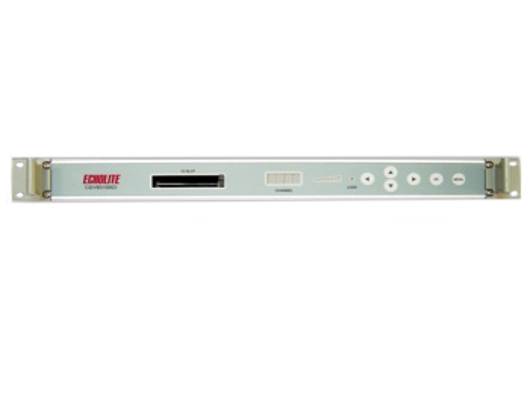

CDVB5100CI is a high performance and cost-effective decoder for satellite networks worldwide. Incorporating the powerful single chip, this rack mounting decoder boasts an attractive slimline profile packed with the latest technology in DVB design. Specially designed and engineered for cable and satellite operators, the decoder features field-proven reliability, exceptional stability and flexibility. The embedded common interface provides great support for a wide variety of CA systems.

Specifications



TUNER
Input Frequency: 950 ~ 2150MHz
Input Level: -65 ~ -25dBm
Input Impedance: 75Ω
Tone Switch: 0/22K for Universal LNB
LNB Power: 14V/18V/OFF, Imax = 500mA

CHANNEL DECODING
Standard: DVB-S EN300 421
Demodulation: QPSK
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
Roll Off Factor: 0.35
Reed Solomon: 204, 188, t = 8
Symbol Rate: 2.0 ~ 45 MS/s

DEMULTIPLEXER
Standard: ISO/IEC 13818-1

VIDEO DECODING
Standard: ISO/IEC 13818-2, MPEG-2 MP@ML
Aspect Ratio: 4:3, 16:9
Video Format: PAL/NTSC

AUDIO DECODING
Standard: ISO/IEC 13818-3
Decoding: MPEG-1 & MPEG-2 layer I and II
Output Mode: Mono, Dual channel, Stereo
VIDEO OSD R-AUDIO Volume Level: 32 Levels

MEMORY
CPU SDRAM: 16MBytes
AV SDRAM: 4MBytes
FLASH Memory: 4MBytes

COMMON INTERFACE
Standard: EN 50221
Support: Irdeto CA, NDS VideoGuard, Viaccess, Nagravision, Canal+ MediaGuard, and Cryptowork

FRONT PANEL
LED Display: 4-digit LED to indicate channel number and status
Signal Intensity Indicator: 10 Levels to reflect signal quality
Keys: Up, Down, Left, Right, Menu, OK
Common Interface Slot(s): 2

REAR PANEL
RF Input: F-type Female
Loop Through Output: F-type Female
RCA Output: 2 x RCA for unbalanced audio output and 1x RCA for line monitoring video output (with OSD)
RS232 Serial Port: DB-9 Male
ASI TS Output: BNC connector 188/204
Composite Video Output: BNC Connector (without OSD)
Audio Balance Output: 2 x XLR 600Ω

POWER
Input Voltage: AC85 ~ 265V, 50/60Hz
Power Consumption: 30 Wmax

AMBIENT
Operation Temperature: 0 ~ 40 °C
Size: 480mm(W) x 288mm(D) x 44mm(H)
Weight: 3.83 kg

Characteristic



– Fully DVB-S ETSI/EN300 421 compliant

– Powerful single chip

– Symbol rate supported from 2 to 45 MS/s

– Use by CAM card, it decrypts the conditional access systems encrypted

– ASI transport stream (TS) input & output interfaces for cascade connecting

– TS output (ASI) with scrambled or non-scrambled stream

– BNC connector for professional composite video output (without OSD) and RCA for line monitoring video output (with OSD)

– XLR connector for balanced 600Ω audio output and RCA connector for unbalanced audio output

– Keyboard operating lockable through real panel switch

– 10-level LED signal strength indicator with 4-segment LED channel number displayer

– Automatic recovery for latest system configuration due to unexpected power off

– VBI teletext support

– Supporting finger print display

– Message and mail service

– Linking the equipments to update via RS232 serial port or headend system

– Web server control by Network

Note: the function needs the support of head-end system
