Descriptions

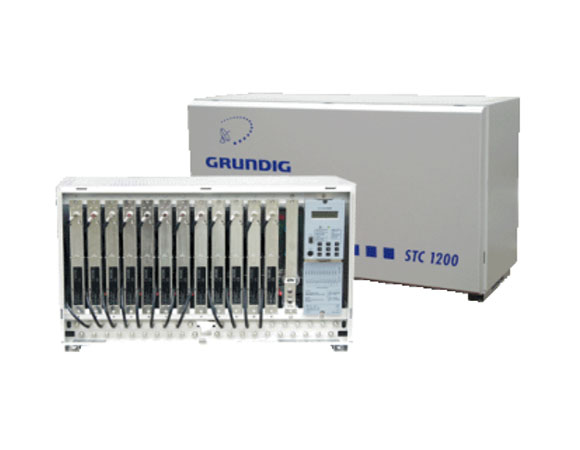

The STC 1200 main station is a modular system for receiving and processing analog satellite radio and TV programmes, digital satellite (free and unprotected) TV programmes, as well as terrestrial radio and TV programmes.

Characteristic



– Maximum number of SINGLE or TWIN modules 12;
– Input/Output impedance (ohms) 75;
– S/N Ratio (dB) 55;
– Input frequency (MHz) 47-862, 950-2150;
– Signal input level (dBµV) 63-98;
– Maximum signal input level (dBµV) 105;
– Setting the signal output level (dB) -20;
– Output frequency (MHz) 47-862;
– Power supply (V, 50/60Hz) 220-240;
– Consumption (W, in full configuration) 180;
– Dimensions (cm, WxHxL) 70x41x31
